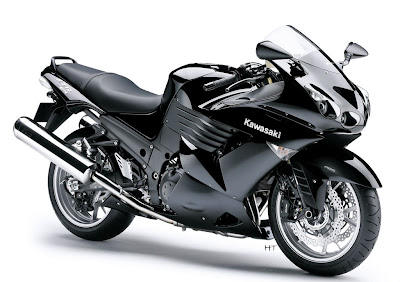

Kawasaki ZZR1400 2008

Poster Size-1024x768



General information
Model:Kawasaki ZZR1400
Year:2008
Category:Sport
Rating:75.1 out of 100.
Engine and transmission
Displacement:1352.00 ccm (82.50 cubic inches)
Engine type:In-line four
Stroke:4
Torque:136.00 nm (13.9 kgf-m or 100.3 ft.lbs) @ 6200 RPM
Compression:12.0:1
Bore x stroke:84.0 x 61.0 mm (3.3 x 2.4 inches)
Fuel system:Injection. 4 x Mikuni
Valves per cylinder:4
Fuel control:DOHC
Ignition:Digital
Starter:Electric
Cooling system:Liquid
Gearbox:6-speed
Transmission type
final drive:
Chain
More detailsConsult a Kawasaki repair manual.
Physical measures
Dry weight:224.0 kg (493.8 pounds)
Seat height:800 mm (31.5 inches) If adjustable, lowest setting.
Overall height:1,170 mm (46.1 inches)
Overall length:2,170 mm (85.4 inches)
Overall width:760 mm (29.9 inches)
Ground clearance:125 mm (4.9 inches)
Wheelbase:1,460 mm (57.5 inches)
Chassis and dimensions
Frame type:Aluminium
Rake (fork angle):26.1°
Trail:112 mm (4.4 inches)
Front suspension:Inverted, telescopic fork, 43 mm
Rear suspension:Aluminium swing arm with Bottom-Link-Uni-Trak
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:190/50-ZR17
Front brakes:Double disc
Front brakes diameter:310 mm (12.2 inches)
Rear brakes:Single disc
Rear brakes diameter:270 mm (10.6 inches)
Speed and acceleration
Other specifications
Fuel capacity:22.00 litres (5.81 gallons)
Comments:149.5 KW with RAM air
