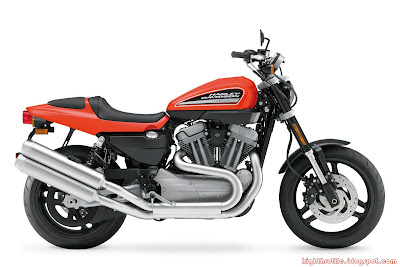

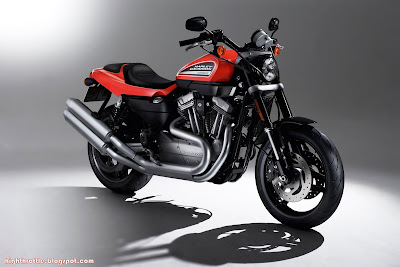

2009 Harley-Davidson XR1200

16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

DEMAND FOR HARLEY-DAVIDSON XR1200 SPARKS AMERICAN DEBUT

Riders Order Hundreds of New Hot Rod Sportsters Before Official Release

MILWAUKEE (Dec. 1, 2008) - Inspired by the XR-750, the most dominating American dirt track racing motorcycle of all-time, the Harley-Davidson XR1200 is now poised to boost adrenalin levels on streets, roads and highways around the world.

The XR1200 is a powerful new Harley-Davidson hot rod motorcycle that was initially designed and launched only in European markets in April 2008. With the high degree of interest and passionate reception surrounding the bike's European release, as well as demand from Harley riders and competitive brand owners alike, the XR1200 is now being launched in all markets.

16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

Drawing significant styling influences from the successful Harley-Davidson XR-750 motorcycles that set new standards for dirt track racing success over the last 30 years, the XR1200 features technical innovation to provide potent street performance and handling. In fact, Harley-Davidson dirt track racing legends Scott Parker and Rich King participated in the XR1200 development.

"The XR1200 is an exciting motorcycle with an aggressive attitude," said Bill Davidson, Harley-Davidson Vice President, Core Customer Marketing. "This bike will provide the performance and distinct style demanded by uncompromising riders. In fact, hundreds of XR1200s were ordered by enthusiastic customers before we really even promoted it."

16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

The successful dirt track legacy continues today as Harley factory rider Kenny Coolbeth won his third straight AMA Grand National Twins flat track championship on the XR-750 in 2008. While distinctive racing paint and graphics on the XR1200 will catch the eye, Harley-Davidson racing tradition and influence are clearly evident in the bike's key features, design and style.

The 1200 cc Evolution V-Twin engine with its high 10.0:1 compression ratio, performance cams, downdraft fuel injection, precision-cooled cylinder heads and large capacity oil cooler cranks out high torque. Rubber mounted to a new frame with a cast aluminum swingarm, the engine delivers exhilarating performance and responsive handling with less vibration. A unique upswept, high-volume 2-1-2 straight shot exhaust system includes dual mufflers and is finished in satin chrome.

16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

A sport-tuned Showa® suspension with inverted 43 mm front forks and twin preload adjustable shocks combines with lightweight black cast three-spoke wheels to make the XR1200 ride and corner with feeling. Specially designed Dunlop(R) Qualifier D209 tires connect the rider to the road, while Nissin(R) four-piston large disc front brakes provide stopping power.

16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

Additional racing influences on the XR1200 include details like dirt track style bodywork, wide black low-rise handlebar, a 29.2-inch seat height and aggressive riding position. Rearset foot pegs provide additional cornering clearance with a 39-degree lean angle. The compact instrument cluster combines a digital speedometer, white-faced tachometer, dual trip meter and clock.

The XR1200 is available in Vivid Black, Mirage Orange Pearl and Pewter Denim colors. The Harley-Davidson hands free Smart Security System is optional in North America. U.S MSRP is $10,799.

16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

XR 1200 features and highlights:

Isolation-mounted XL Evolution 1200 cc V-Twin engine with silver powdercoat finish

Downdraft Electronic Sequential Port Fuel Injection (ESPFI)

Electronically controlled active intake system

Precision oil-cooled cylinder heads

74 ft. lbs. peak torque @ 4000 rpm (per SAE J1349)

High performance designed tubular mild steel frame and cast aluminum swingarm

Black three-spoke lightweight cast aluminum wheels, 18-inch front / 17-inch rear

Specifically developed Dunlop Qualifier D209 tires

Wide black dirt track handlebar

Styling and graphics inspired by the legendary Harley-Davidson XR-750 dirt track racer

Upswept, high-volume brushed stainless steel 2-1-2 straight shot exhaust system with satin chrome finish

Nissin dual front brakes with four-piston calipers and 292 mm patented uniform expansion rotors

Sport-tuned Showa suspension with 43 mm inverted front forks and pre-load adjustable twin rear shock absorbers

Rearset foot pegs for additional cornering clearance

29.2-inch seat height with standard passenger pillion and foot pegs

Optional Harley-Davidson Smart Security System

Aircraft style aluminum alloy fuel filler

Unique compact instruments with white-faced tachometer, digital speedometer, dual trip meter and clock

3.5-gallon fuel tank.

16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

1   Measurement reflects 180 lb./81.7 kg operator weight.

2 Recommended 91 octane or higher fuel (R+M)/2.

3 Values shown are nominal. Performance may vary by country and region.

4 Standard and optional fuel systems may vary by country.

5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

6 Standard and optional wheels may vary by country and region.

7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

8 Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

 16800x1120 - Wallpaper, Click on the Image then Right Click and Save it.

* Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered.

    * All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed.

    * Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation.

    * Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information.

    * All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
